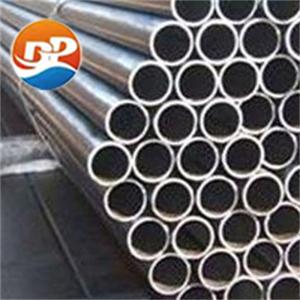

DIN 17175 15Mo3 Alloy Seamless Steel Pipe / Tubes Of Heat Resistant Steels

  • 1
  • 2

Brand Name : BaoYang

Model Number : DIN 17175 15Mo3

Certification : CE & ISO

Place of Origin : cangzhou

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 7~30 working days

Packaging Details : Standard Export Packing

Name : Seamless Alloy Steel Pipes

Process : Hot Rolled Cold Rolled Cold Drawn

Standards : DIN 17175 15Mo3

Material : Alloy Steel Pipe

Wall Thickness : 1-30mm (0.04 Inch - 0.78 Inch)

Outer Diameter : 10-324mm

Processing Service : Bending, Punching, Cutting

Usage : Pipeline Transport, Oil/Gas Drilling, Machinery Industry

Contact Now

DIN 17175 15Mo3 Alloy Seamless Steel Pipe/Tubes

1. Product Description: DIN 17175 15Mo3 Alloy Seamless Steel Pipe/Tubes are engineered for applications that demand high levels of heat resistance and mechanical strength. These pipes and tubes are manufactured from an alloy steel that is seamless, ensuring uniform wall thickness and superior structural integrity. The 15Mo3 grade is specifically designed to offer excellent creep resistance and good weldability, making it suitable for high-temperature applications.

2. Product Parameters:

Parameter Description
Grade DIN 17175 15Mo3
Material Alloy Steel (Seamless)
Standard DIN 17175
Size Range Various diameters and wall thicknesses as per DIN 17175
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property Typical Requirements
Tensile Strength ≥410 MPa (59,500 psi)
Yield Strength ≥255 MPa (37,000 psi)
Elongation ≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%)
Carbon 0.12 - 0.20
Manganese ≤1.00
Phosphorus ≤0.025
Sulfur ≤0.025
Silicon ≤0.50
Chromium ≤0.50
Molybdenum ≤0.50

5. Product Applications:

  • Boiler Tubes: Used for steam generation in high-pressure boilers.
  • Heat Exchangers: Ideal for use in heat exchangers operating under high pressure and temperature.
  • Superheater Tubes: Employed in superheater sections to raise steam temperature.
  • Pressure Vessels: Suitable for construction of high-pressure vessels and reactors.
  • Gas and Oil Industry: Utilized in pipelines and equipment for oil and natural gas transport in high-temperature environments.

DIN 17175 15Mo3 Alloy Seamless Steel Pipe / Tubes Of Heat Resistant SteelsDIN 17175 15Mo3 Alloy Seamless Steel Pipe / Tubes Of Heat Resistant Steels
