Hot Rolled Cold Rolled Astm A53 Carbon Steel Pipe / Api 5l Gr B Seamless Pipe Tube

  • 1
  • 2

Brand Name : BaoYang

Model Number : ASME SA53 API 5L GR.B

Certification : CE & ISO

Place of Origin : cangzhou

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 7~30 working days

Packaging Details : Standard Export Packing

Name : Seamless Carbon Steel Tube

Process : Hot Rolled Cold Rolled Cold Drawn

Standards : ASME SA53 API 5L GR.B

Material : Carbon Steel

Wall Thickness : 1-20mm (0.04 Inch - 0.78 Inch)

Outer Diameter : 6-2500mm

Processing Service : Bending, Punching, Cutting

Usage : Pipeline Transport, Oil/Gas Drilling, Machinery Industry

Contact Now

ASME SA53 API 5L Grade B Carbon Steel Seamless Tubes

1. Product Description: ASME SA53 API 5L Grade B Carbon Steel Seamless Tubes are high-quality pipes used extensively across various industries for a multitude of applications. These tubes are manufactured from carbon steel and are seamless, ensuring a uniform wall thickness and superior structural integrity. The Grade B designation indicates a specific level of mechanical properties suitable for a range of high-pressure applications.

2. Product Parameters:

Parameter Description
Grade ASME SA53 API 5L Grade B
Material Carbon Steel (Seamless)
Standard ASME SA53, API 5L
Size Range Various diameters and wall thicknesses as per ASME SA53 and API 5L standards
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property Requirement
Tensile Strength ≥415 MPa (60,000 psi)
Yield Strength ≥240 MPa (35,000 psi)
Elongation ≥20% in 50 mm (2 in) or 4D, whichever is greater
Hardness Varies depending on heat treatment and processing

4. Chemical Composition:

Element Typical Range (%)
Carbon 0.29 - 0.36
Manganese 0.35 - 0.60
Phosphorus ≤ 0.035
Sulfur ≤ 0.035
Silicon ≤ 0.35

5. Product Uses:

  • Oil and Gas Industry: Used for transporting oil, natural gas, and other fluids in pipelines.
  • Structural Applications: Employed as structural supports in construction projects.
  • Mechanical Equipment: Suitable for manufacturing various mechanical components and equipment.
  • Piping Systems: Ideal for use in industrial piping systems for water, steam, and other fluids.
  • Pressure Vessels: Utilized in the construction of pressure vessels and boilers.

6. Product Grade Standards:

  • ASME SA53: This standard specifies requirements for seamless ferritic and austenitic steel pipes used in high-temperature services.
  • API 5L Grade B: This grade is part of the API 5L specification, which covers line pipes (seamless and welded) used for pipeline transportation systems in the petroleum and natural gas industries.

Conclusion: ASME SA53 API 5L Grade B Carbon Steel Seamless Tubes are versatile and robust, offering a range of benefits that make them suitable for various high-pressure and high-temperature applications. Their seamless construction and adherence to ASME SA53 and API 5L standards ensure that these tubes provide a reliable and cost-effective solution for industries such as oil and gas, construction, and mechanical engineering.

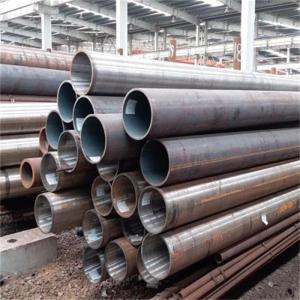

Product Image

Hot Rolled Cold Rolled Astm A53 Carbon Steel Pipe / Api 5l Gr B Seamless Pipe Tube
Company Profile
Hot Rolled Cold Rolled Astm A53 Carbon Steel Pipe / Api 5l Gr B Seamless Pipe Tube
Factory Tour
Hot Rolled Cold Rolled Astm A53 Carbon Steel Pipe / Api 5l Gr B Seamless Pipe Tube
team introduction
Hot Rolled Cold Rolled Astm A53 Carbon Steel Pipe / Api 5l Gr B Seamless Pipe Tube
Applications
Hot Rolled Cold Rolled Astm A53 Carbon Steel Pipe / Api 5l Gr B Seamless Pipe Tube
