ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube

  • 1
  • 2

Brand Name : BaoYang

Model Number : ASME SA106b SA106c

Certification : CE & ISO

Place of Origin : cangzhou

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 7~30 working days

Packaging Details : Standard Export Packing

Name : Seamless Carbon Steel Tube

Process : Hot Rolled Cold Rolled Cold Drawn

Standards : ASME SA106b SA106c

Material : Carbon Steel

Wall Thickness : 1-20mm (0.04 Inch - 0.78 Inch)

Outer Diameter : 6-2500mm

Processing Service : Bending, Punching, Cutting

Usage : Pipeline Transport, Oil/Gas Drilling, Machinery Industry

Contact Now

ASME SA106 Grade B and Grade C High Pressure Seamless Steel Boiler Tubes

1. Product Description: ASME SA106 Grade B and Grade C High Pressure Seamless Steel Boiler Tubes are premium-quality tubes designed for use in high-pressure boiler systems. These tubes are manufactured from carbon steel and are seamless, ensuring uniform wall thickness and superior structural integrity. The ASME SA106 standard specifies these tubes, which are categorized into different grades based on their mechanical properties and intended applications.

2. Product Parameters:

Parameter Description
Grades ASME SA106 Grade B and Grade C
Material Carbon Steel (Seamless)
Standard ASME SA106
Size Range Various diameters and wall thicknesses as per ASME SA106
Length Standard lengths, customizable upon request
Ends Plain ends, beveled ends, threaded, or socket-weld ends
Surface Treatment As-rolled, annealed, or normalized

3. Mechanical Properties:

Property ASME SA106 Grade B Requirement ASME SA106 Grade C Requirement
Tensile Strength ≥485 MPa (70,000 psi) ≥485 MPa (70,000 psi)
Yield Strength ≥240 MPa (35,000 psi) ≥310 MPa (45,000 psi)
Elongation ≥20% in 50 mm (2 in) ≥20% in 50 mm (2 in)
Hardness Varies depending on heat treatment Varies depending on heat treatment

4. Chemical Composition:

Element Typical Range (%) for ASME SA106 Grades
Carbon 0.29 - 0.36
Manganese 0.35 - 0.60
Phosphorus ≤ 0.025
Sulfur ≤ 0.025
Silicon ≤ 0.35

5. Product Uses:

  • Boiler Tubes: Utilized in power and industrial boilers for steam generation.
  • Superheater Tubes: Employed in the superheater sections of steam power plants.
  • Heat Exchangers: Suitable for use in heat exchangers operating under high pressure and temperature.
  • Pressure Vessels: Ideal for construction of high-pressure vessels and reactors.
  • Refineries: Used in high-temperature pipelines and components within oil refineries.

6. Product Grade Standards:

  • ASME SA106 Grade B: This grade is suitable for moderate pressure applications and offers balanced mechanical properties.
  • ASME SA106 Grade C: Offers higher tensile and yield strength compared to Grade B, making it suitable for more demanding high-pressure applications.

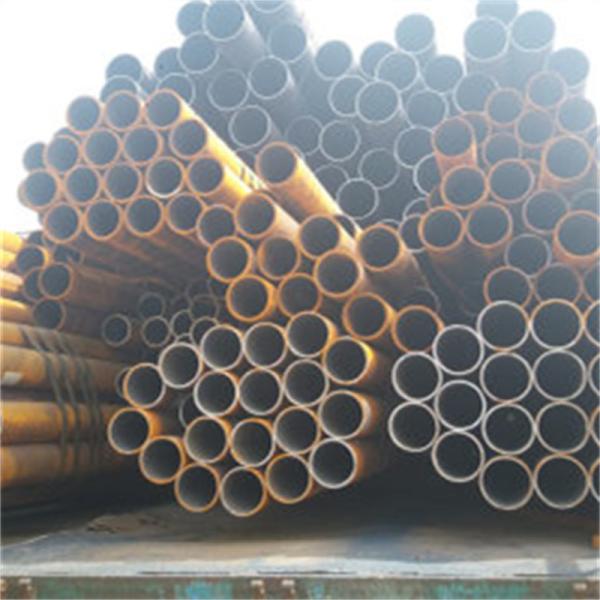

Product Image

ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube
Company Profile
ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube
Factory Tour
ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube
team introduction
ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube
Applications
ASME SA106b SA106c High Pressure Seamless Steel Tube Boiler Tube
